Automation E-Chuck

Suitable for:

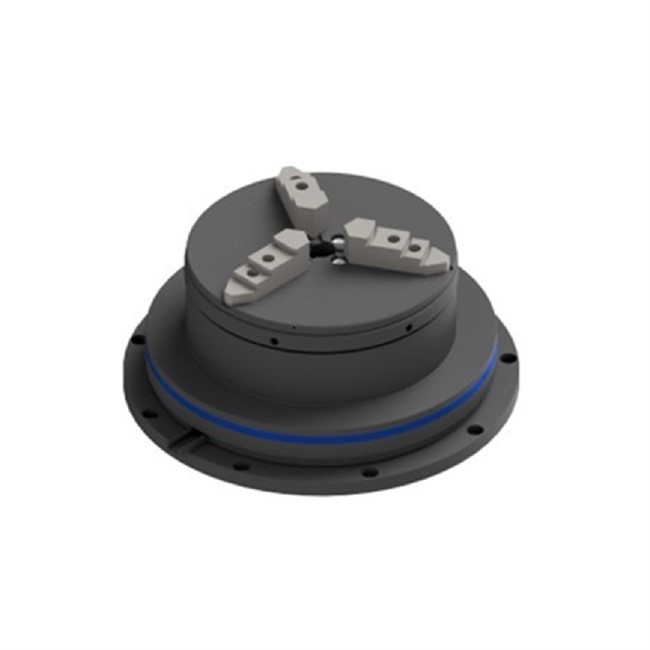

The E-Chuck enables precise clamping of the finest parts and endless rotation for machining complex geometries.

Request a quote

The E-Chuck is ideal for applications that require precise and secure clamping of the finest parts. With its adjustable clamping force and ability to rotate endlessly around its own axis, it is particularly suitable for machining complex geometries. Perfect for use in modern measuring machines, the E-Chuck improves productivity, safety and accuracy in production.

Features at a Glance

Chuck opens and closes electrically

Rotates 360 degrees around its own axis thanks to slip ring design

JF chuck as base; reversible jaw system

Ground jaws

CANopen communication interface. Optional: I/O box for manual operation

Advantages

Why the E-Chuck is the ideal clamping solution for automating your processes

1. Increased productivity

The E-Chuck enables a higher level of automation with stable, repeatable clamping operations. It is ideal for high-volume applications where reduced setup times are required.

2. Precision and Process Reliability

With a runout of 0.02 mm and precisely adjustable clamping force, the E-Chuck is also suitable for sensitive workpieces and demanding measurement tasks.

3. Easy Integration

Thanks to a 24 V DC power supply and CANopen communication, the E-Chuck integrates seamlessly into modern measurement and manufacturing systems. Optionally controllable via an IO box.

4. Flexibly Customizable

Attachment jaws and adapters are custom-manufactured as needed to ensure the E-Chuck is optimally tailored to every workpiece and interface.

Applications

The E-Chuck is designed for applications where precision, automation, and repeatable clamping processes are critical.

Quality Control

All types of measuring machines

Precision Engineering

For measuring and assembly

Manufacturing

For light machining

Assembly

Easy installation

How It Works

How the E-Chuck Works and How to Use It

Step 1: Position the Workpiece

The workpiece is loaded automatically or manually.

Step 2 – Electric Clamping

The three jaws close electrically; the clamping force is precisely controlled and monitored.

Step 3 – Endless rotation

The workpiece can rotate freely and without restriction for measurement or manufacturing processes.

Tech Specs

Technical Specifications


Concentricity	0.02 mm
Max. clamping force	60 N
Min. clamping force	15N
Clamping range, external clamping (standard)	1.5 - 140 mm
Clamping range, internal clamping (standard)	46 - 172 mm
Max. workpiece weight	4 kg
E-Chuck weight	7.5 kg
Power supply	24 V DC, 10 A
Power supply	CANopen, optional mit IO-Box, Software control via DLL
Repeatability	< 5 µm
Max. torque	2 Nm

See the data sheet for full details

51400000-Datasheet-E-Chuck-EN.pdfDownload the "E-Chuck" data sheet

Configurations / Accessories

Configurations

Customization

Customizable

Jaw Shape & Material

Customizable

Number of Jaws

Customizable

Laser Marking / Logo Sticker

Customizable

Accessories

IO-Box (if no external software is required)
Load Carrier (for heavy workpieces)
Centering Pin

Videos & Downloads

Videos

Maprox - smart clamping solutions for all industries

Downloads

FAQ

The E-Chuck can be connected directly to modern measuring and testing machines via 24 V DC and CANopen.
Alternatively, the IO-Box can be used to integrate the controller into existing systems.

By default, the E-Chuck covers the following clamping ranges:
- External clamping: 1.5–140 mm
- Internal clamping: 46–172 mm
If other clamping ranges are required, we also offer custom-made clamping jaws.

The clamping force can be calibrated via CANopen or the IO box, depending on the application.

Yes, this is made possible by the built-in slip ring, which can be omitted if continuous rotation is not required.

We distribute the E-Chuck worldwide.

No, the E-Chuck does not rotate on its own. However, we also offer another version of the E-Chuck that is integrated into a turntable.

The E-Chuck comes standard with three jaws. Upon customer request, models with six to eight jaws are also available.
