CT-Fix CT-130

image-multiple
Industries:
Suitable for:
Precise positioning and fixing of smaller measuring objects in 3D coordinate measuring machines
Request in online store
Offerte anfragen

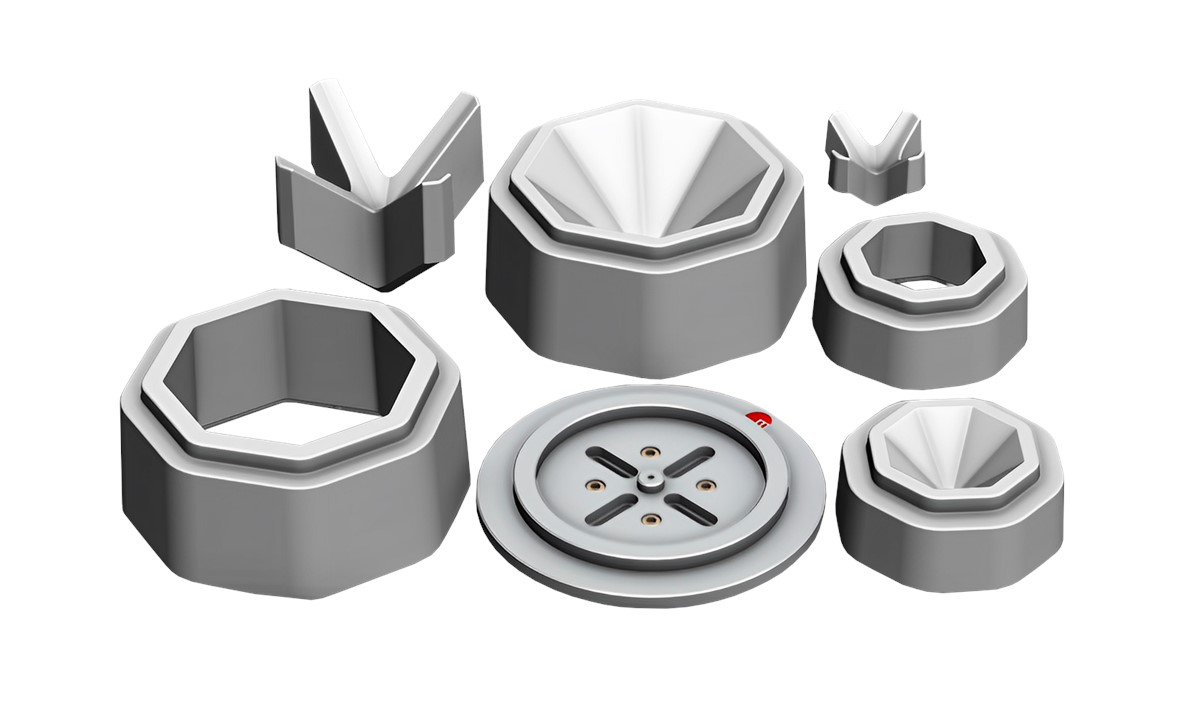

The CT-Fix 130 offers an optimum solution for the precise positioning and fixing of larger measuring objects in 3D coordinate measuring machines with X-ray computed tomography (CT). With a usable diameter of up to 130 mm, it is perfect for measuring larger and more complex components. The stackable components such as the funnel, extension ring and divider allow flexible adaptation to different object sizes and shapes. The CT-Fix 130 guarantees a stable fixation that ensures accurate and repeatable measurement, allowing multiple measurement objects to be positioned and measured simultaneously.

Usage

  • Exclusively for CT measuring devices
  • Funnel, divider and extension ring made of special antistatic EPS with low density; for a wide range of materials of the component to be measured
  • Centering pin; inserted into adapter plate through divider etc. For center definition during measurement
  • Homogeneous wall thicknesses to avoid distortion
  • 2 different sizes; 70 and 130mm
  • Used by Werth-Messtechnik in the application center
